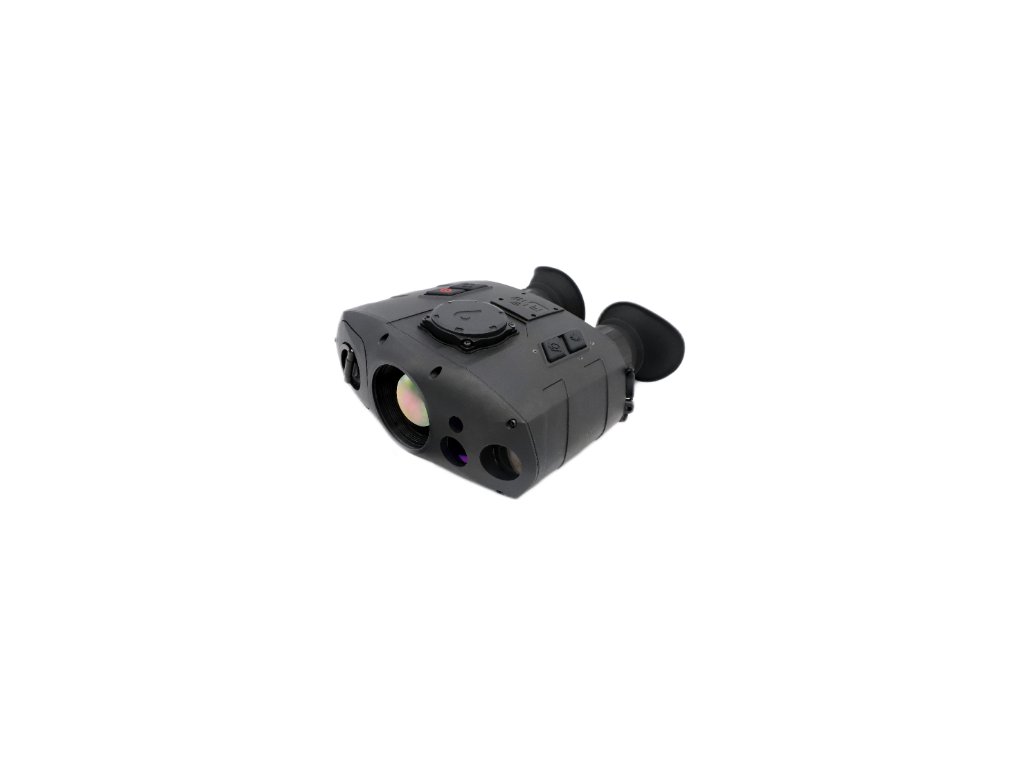

NGS T-BHM
6.2-megapixel visible light 800,000-pixel infrared dual-channel system
Product detailed description
The NGS T-BHM is equipped with a 6.2-megapixel visible light and an 800,000-pixel infrared dual-channel system that is suitable for day and night use.
It features a built-in location module, digital magnetic compass, and laser rangefinder, enabling fast and accurate self and target positioning while supporting target information collection and upload.
With a portable weight of ≤ 1.1kg, it offers an ultra-high performance density to provide users with all the necessary situational awareness capabilities.
Technical data:
Thermal Channel
| Resolution | 1024×768 pixels |
| Field of View | 15.5×11.6° |
Color Day Channel
| Field of View | 11.0×8.2° |
| Resolution | 2880×2160 pixels |
Laser Range Finder
| Type(Eye Safe) | 1535 nm |
| Max Range | > or equal to 3000m |
| Accuracy | + - 1m |
Digital Magnetic compass
| Azimuth Accuracy(RMS) | + - 1° |
| Inclination Accuracy(RMS) | + - 1° |
Internal GPS Receiver
| Accuracy(CEP) | 5m |
Display
| Resolution | 1440×1080 pixels (OLED) |
Power Supply
| Battery Type | 4×18650 |
| Battery Life | > or equal to 7h |
Interfaces
| Standard Interface Type | DC/USB/RS232/HDMI |
| Wireless | WIFI |
Physical data
| Dimensions(L×W×H) | 143×164×73 mm |
| Weight(With Batteries) | 1,1 kg |
| Immersion | IP67 |
