Green phosphor version. Universal Battery Compartment included for FREE. Available in multiple housing colors. Green or White Phosphor. Optional Manual gain. Housing from USA, model from Low Light Innovations.
Product detailed description

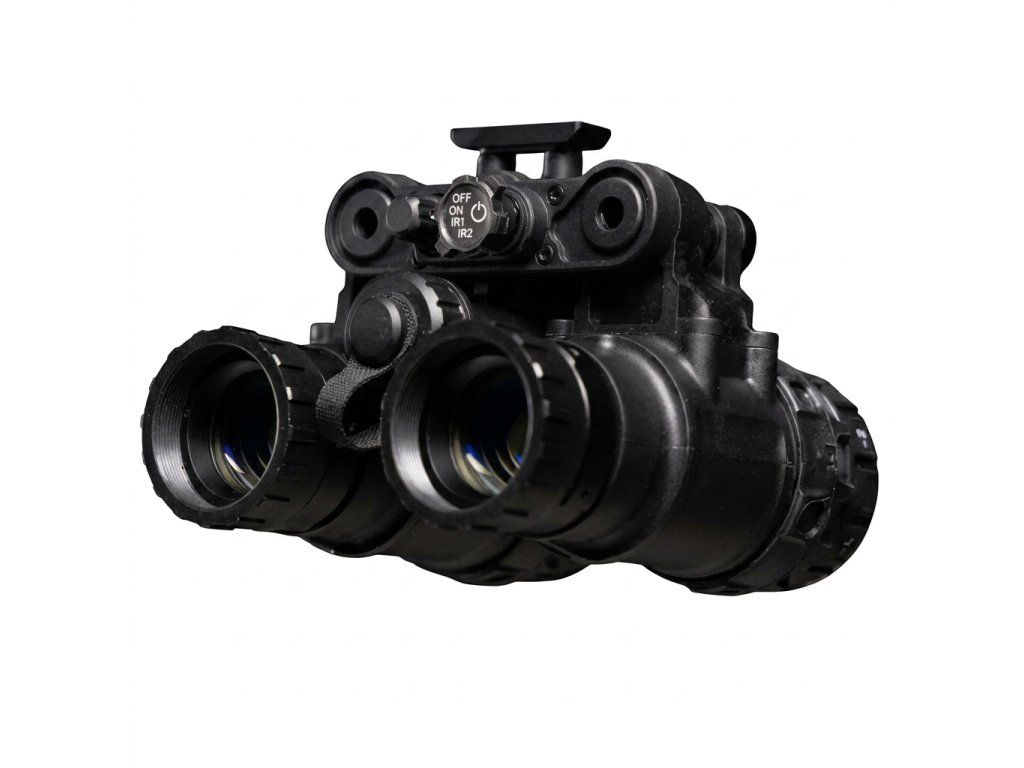

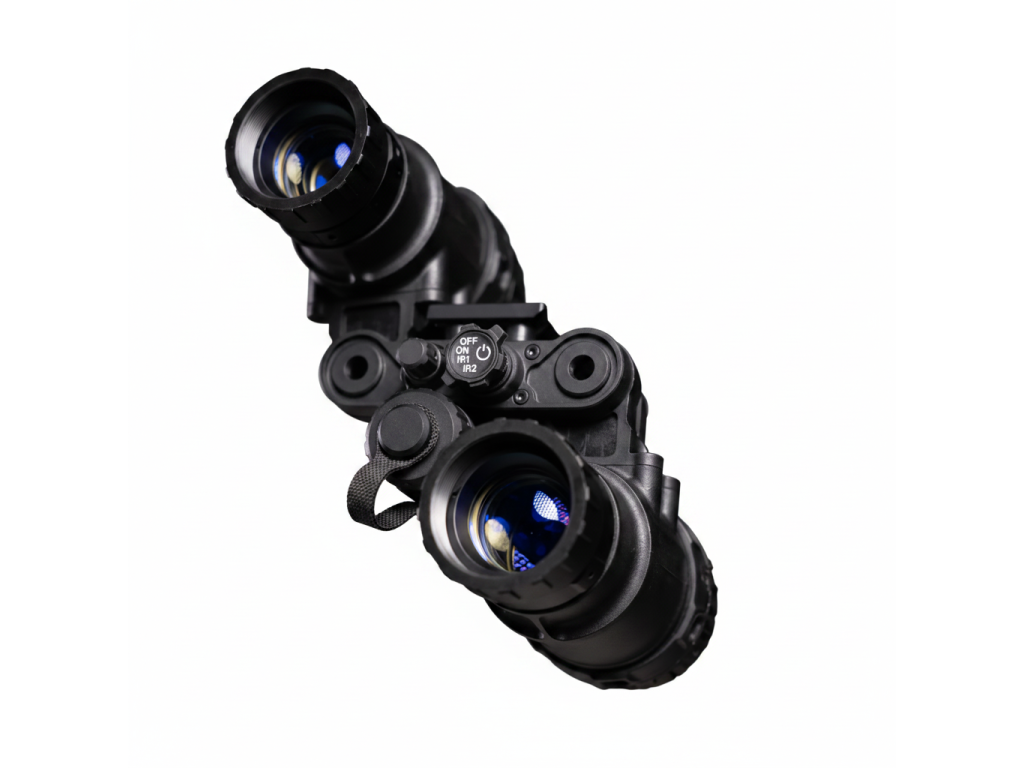

. The UH-1 is an affordable, USA-made, feature-packed dual-tube binocular night vision platform from Low Light Innovations.
The housing is constructed from fiber-reinforced polymer with an aluminum dovetail, aluminum rear plate, and aluminum battery compartment. This material set delivers structural precision and durability at a lower production cost than the magnesium and titanium construction of the flagship MH-1. The UH-1 is user serviceable with field-level access for tube swaps and routine maintenance. It is non-modular by design.
The UH-1 runs on AA batteries with external power input via Fischer 4-pin connector. Both sources can be connected at the same time, and onboard smart circuit logic provides automatic failover if external power is interrupted. Continuous runtime is approximately 25 to 90 hours depending on configuration and power source.
The optical system is PVS-14 compatible and the housing is fully tube agnostic, accepting any standard 18mm image intensifier tube including MX-10160 and MX-11769.
The UH-1's manual gain assembly connects without soldering, allowing installation and service at the field level. Every UH-1 is designed and assembled in East Greenwich, Rhode Island, manufactured in the United States, and backed by a transferable lifetime warranty.
Made in the USA
MH-1 can be fitted with the JerryC PRO Clip-on thermal imaging system for enhanced target aquisition and recognition.
Mounting of the device to your helmet/headstrap is simple. You will just need the Mount itself. The mount can be attached to helmet or to the headstrap.
You have two optics options to choose from: NGS LWT or RPO 4.0.
The advantages of NGS LWT are that they are fully mil-spec and have higher light transmission and less image distortion. LW optics are manufactured in China with an emphasis on the highest quality. RPO 4.0 optics are manufactured in the USA, have a larger exit pupil, better eye relief and lower weight.
SPECIFICATIONS:
- POWER SOURCE: AA / 4-PIN FISCHER
- FOCUS RANGE: 9.8" TO INFINITY
- OPERATION TIME: APPROXIMATELY 25-90 HOURS
- MAGNIFICATION: 1× (ONE POWER)
- FIELD OF VIEW: 40 DEGREES
- INTERPUPILLARY ADJUSTMENT: 54 TO 78MM
- DIOPTER ADJUSTMENT: -6 TO +2
- EYE RELIEF: 25MM
- MINIMUM WEIGHT: 459g (housing only)
- WATER RESISTANCE: DESIGNED TO MEET IP68
- INTENSIFIER TUBES: COMPATIBLE WITH MX-10160 / MX-11769 (not included)
- OPTICS: COMPATIBLE WITH PVS-14 EYEPIECE AND OBJECTIVE (not included)
- WARRANTY: TRANSFERABLE LIFETIME WARRANTY
- EXPORT: EAR-99 (HOUSING ONLY)
