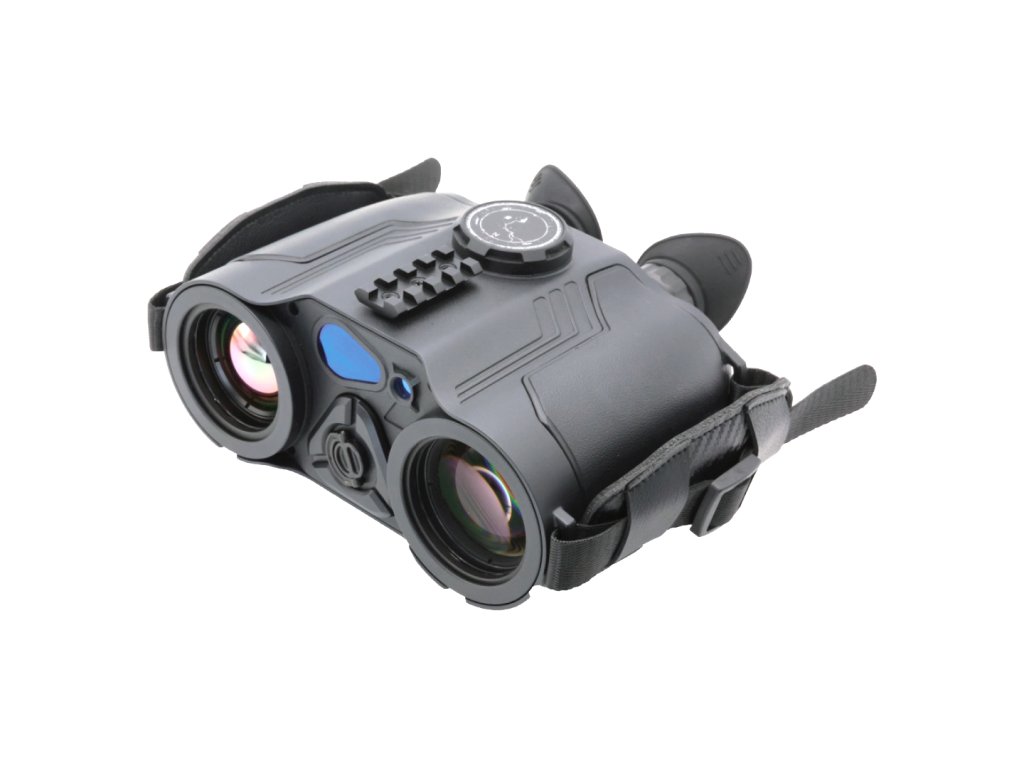

NGS T-BHF
THE BEST all-weather observation with Range-finding and geolocation capabilities
| Category: | NGS Exclusive |
|---|
The NGS T-BHF fulfills the need for all-weather observation with its extensive fusion field of view and excellent detection range.
It has four optical channels, providing precise rangefinding and geolocation capabilities. This lightweight and portable product boasts exceptional thermal radiation and low light detection abilities, assisting users in preemptively identifying potential threats and enhancing their response efficiency.
Technical data:
Thermal Channel
| Resolution | 1024×768 pixels |
| Field of View | 15.5×11.6° |
Low Light Level Channel
| Field of View | 17.4.0×13.1° |
| Resolution | 1280×960 pixels |
Laser Range Finder
| Type(Eye Safe) | 1535 nm |
| Max Range | > or equal to 3000m |
| Accuracy | + - 1m |
Laser Pointer
| Wavelength | 850 nm |
| Laser Class | Class 1 |
Digital Magnetic compass
| Azimuth Accuracy(RMS) | + - 1° |
| Inclination Accuracy(RMS) | + - 1° |
Internal GPS Receiver
| Accuracy(CEP) | 5m |
Display
| Resolution | 1024x768 pixels (OLED) |
Power Supply
| Battery Type | 3×18650 |
| Battery Life | > or equal to 8h |
Interfaces
| Standard Interface Type | DC/USB/RS232/PAL |
Physical data
| Dimensions(L×W×H) | 201×182×94 mm |
| Weight(With Batteries) | ≤1.4 |
| Immersion | IP67 |
